Fully Automatic High Speed Three Servo Food Beverage Chemical Pouch Filling Horizontal multifunctional packaging machine

브랜드 이름:	LTPM CHINA
모델 번호:	HorizonTop-시리즈
MOQ:	1 세트
가격:	Consultation and detailed discussion
지불 조건:	L/C, D/A, D/P, T/T, 서부 동맹, MoneyGram
공급 능력:	25세트/월

상세 정보

제품 설명

상세 정보

원래 장소:

Zhejiang, 중국

인증:

CE,ISO

포장 유형:

스탠드업 파우치, 가방, 필름, 파우치, 실링

자동 등급:

오토매틱

전압:

380 V/220V

충전재:

분말, 붙여 넣기, 과립, 액체, 고체

애플리케이션:

식품, 음료, 상품, 화학, 기계 및 하드웨어, 의류, 직물, 담배, 제약

보증:

5년

포장 세부 사항:

표준 목재 케이스 수출

공급 능력:

25세트/월

강조하다:

fully automatic pouch filling machine

high speed servo packaging machine

horizontal chemical packaging machine

제품 설명

Products Description

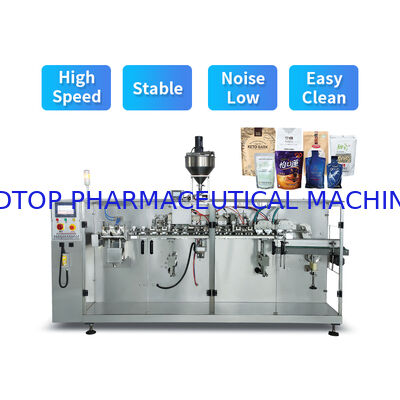

HorizonTop-series Horizontal Packaging Machine

- Horizontal pre-made pouch automatic packing machines series produced by our company adopted international advanced technology and derives from European classical packing machine. With blend of current packing technology, reasonable design and stable running, it is able to pack various sizes of pre-made pouch.

- Equipped with flexible processing unit, it can automatically complete pouch forming, feeding, measuring, filling, sealing, date printing, nitrogen filling, counting, finished product delivery.

- Premade pouch packing series is the most optimum choice to realize economic and reasonable packing.

Machine Data

Model	HorizonTop--210	HorizonTop--250	HorizonTop--360	HorizonTop--450	HorizonTop--500
Speed	30-50 bags/min	30-45 bags/min	15-35 bags/min	40-80 bags/min	3-15 bags/min
Accuracy	± 1.5%	± 1.5%	± 1.5%	± 1.5%	± 1.5%
Bag width	55-200mm	80-250mm	120-350mm	100~200mm	120-400mm
Bag height	100-280mm	100-280mm	100-280mm	100~280mm	150-500mm
capacity	1-5kg	1-5kg	1-5kg	1-5kg	1-15kg
Power	4kw	4kw	4kw	6kw	4kw
Gas consumption	0.6m3/min	0.6m3/min	0.6m3/min	0.6m3/min	0.6m3/min
Air pressure value	0.6MPa	0.6MPa	0.6MPa	0.6MPa	0.6MPa
Weight	1450kg	1700kg	2200kg	2000kg	800kg
Size(mm)	290010001390	350010001390	390010001390	380010001200	230010001390
Warranty	5 years	5 years	5 years	5 years	5 years

Packable Products

- Horizontal pre-made pouch automatic packaging machine with different feeder can package different products, such as powder, granule, candy, liquid, viscous liquid, cream etc.

- It is applied to a wide range of packages, such as pre-made pouch, prefabricated bags, zipper pouch, spouted pouch, and shaped pouch etc. Up to 15kg can be filled.

Assistant device:

1.Servo Motor Auger Filler :

Auger Filler driven by servo motor with features of stable,reliable and easy adjustment;suitable for powder,granule product filling.
2.Volumetric Cup Filler :
Volumetric Cup Filler can do automatic measurement and filling,suitable for granule product filling.
3.Multi-head Linear Weigher :
Multihead Weigher is an ideal solution for quantitative weighing and filling of puffed food,nuts,snacks or frozen food,candy
etc.with various produce shapes like granule,Block or conglobation.
4.Piston Pump Filler :
Piston Pump Filler is suitable for liquid product:viscous or colloidal liquid,cream and other non free-flowing liquid.

Hot Tip
- All of our machines support customization, and can installation of two filling heads at the same time, filling speed is faster. Send an inquiry for more information.

Focus On Details

01. Scale

- Each adjustment station has a scale, so that the size can be adjusted quickly when filling bags of different specifications.

02. Food Grade 304 Stainless Steel And GMP Grade Painting

- The main parts are made of food grade 304 stainless steel, corrosion-resistant and rust free.

- The painting of the whole rack reaches the GMP grade.

03. Dual Filling Station

- Reduce filling time by half, and improved filling accuracy.

- Can filling 2 products simultaneously

04. Dividing Box

- Indexing box running spindle, vibration only 3 microns, almost no vibration.

- The noise is low when the machine is running at high speed.

05. LED Lights

- There is an LED light on the back, so we can see it more clearly during maintenance.

06. Waterproof Trough

- There is a waterproof trough on the back, so we can wash the whole body directly with water.

Features

1. The horizontal pouch packing machine has a wide range of size adjustment. Especially when making big pouch, it can be customized accordingly, and the pouch width can be 500mm. The pouch width of vertical rotary pouch packing machine model 200 and model 300 is only 200mm and 300mm.

2. The horizontal pouch packing machine runs horizontally, with faster speed. The production capacity WITH suitable size can be DOUBLE---TWO FILLING OF TWO POUCH AT THE SAME TIME. The vertical rotary pouch packing machine stabilizes the speed from 35 - 40 pcs/min due to centrifugal force. In addition, when loading a large dose, the speed will be
slower due to centrifugal force.

3. All the transmission mechanism and mechanical structure of the horizontal pouch packing machine are behind the machine, which is easier to clean and more in line with the requirements of clean production. The vertical rotary pouch packing machine is mechanically driven at the bottom. If powder or liquid is produced, it is not easy to clean and corrode in case of leakage.
