제품 세부 정보

집 상품

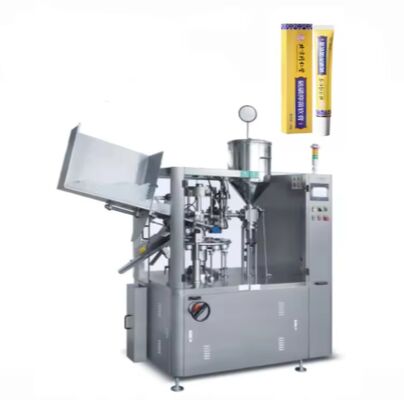

Automatic Plastic Tube Filling and Sealing for Creams Cosmetics Ointment Soft Tube Tube Filling Machine

브랜드 이름:	LTPM China
모델 번호:	LTRG-시리즈
MOQ:	1 세트
가격:	협상 가능
지불 조건:	l/c, t/t
공급 능력:	15세트/월

상세 정보

제품 설명

상세 정보

원래 장소:

중국

인증:

자동 등급:

오토매틱

전압:

380(220)V/50Hz

재료:

304/316L을 의심하세요

생산 능력:

25-40 PC /min

모터:

1.5kW

튜브 높이:

50-250mm

무게:

300kg

치수 (l*w*h):

1500*700*1800mm

포장 세부 사항:

표준 목재 케이스 수출

공급 능력:

15세트/월

강조하다:

automatic tube filling machine for cosmetics

plastic tube sealing machine for creams

automatic ointment tube filling machine

제품 설명

Introduction

This product uses a programmable logic controller (PLC) to program the entire machine, fully automating all processes, from filling and sealing liquids to high-viscosity fluids (pastes) to batch number coding (including the production date). It is ideal for filling and sealing aluminum, plastic, and composite tubes in the cosmetics, pharmaceutical, food, and adhesive industries, and complies with GMP regulations.

Automatic Plastic Tube Filling and Sealing for Creams Cosmetics Ointment Soft Tube Tube Filling Machine 0

Main features & functions

Key Features:

1) A high-quality LCD display and programmable controller with push-button operation screen provides comprehensive visibility into the machine's operating status, including stepless speed regulation, parameter settings, production statistics, air pressure indication, and fault display, ensuring simple and user-friendly operation.

2) The entire process, including tube feeding, calibration, inert temperature gauge charging (optional), filling, sealing, coding, and finished product export, is fully automated.

3) A high-precision calibration system minimizes color variations between the tube and the color scale.

4) External adjustment points and digital position display ensure quick and accurate adjustments (suitable for production of multiple specifications and varieties).

5) Integrated mechanical, optical, electrical, and pneumatic systems ensure no filling without tubes, automatic display (alarm) for incomplete tube feeding, low air pressure, and automatic shutdown when the protective door is opened.

6) The equipment guarantees a qualified product rate of over 99.5%, unless the scrap rate is due to problems with the customer's tube material.

Automatic Plastic Tube Filling and Sealing for Creams Cosmetics Ointment Soft Tube Tube Filling Machine 1

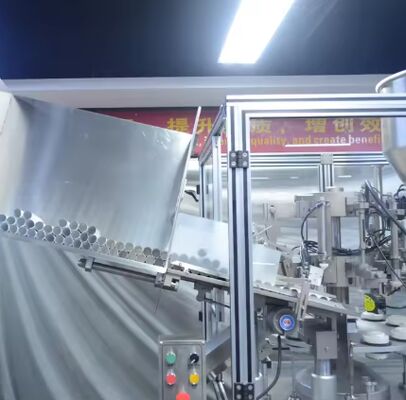

Hose hopper

Used to collect and store hoses waiting for use.

Automatic Plastic Tube Filling and Sealing for Creams Cosmetics Ointment Soft Tube Tube Filling Machine 2

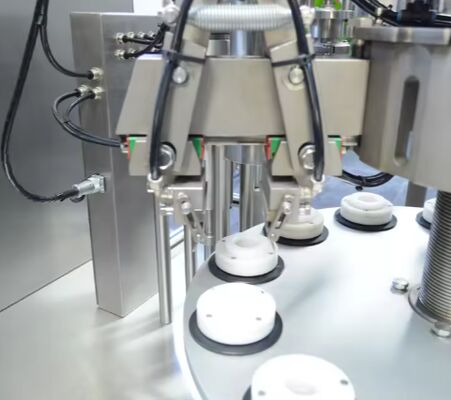

Hose feeder

The robot removes the hose and fixes it to the base.

Automatic Plastic Tube Filling and Sealing for Creams Cosmetics Ointment Soft Tube Tube Filling Machine 3

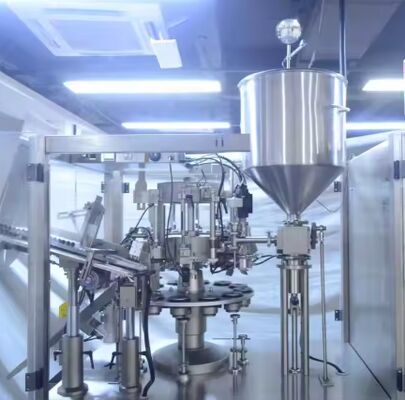

Filling Part

The filling head quantitatively extracts the emulsion and fills it into the hose.

Automatic Plastic Tube Filling and Sealing for Creams Cosmetics Ointment Soft Tube Tube Filling Machine 4

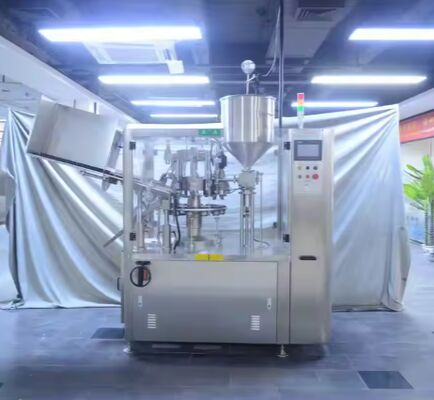

Siemens touch screen

Adopt Siemens touch screen, easy to operate, multiple languages available, stable quality. Automatic Plastic Tube Filling and Sealing for Creams Cosmetics Ointment Soft Tube Tube Filling Machine 5

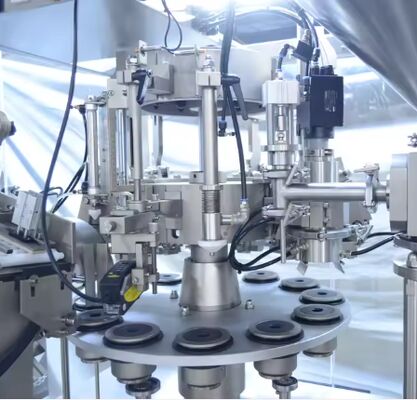

Hose sealing part

Seal the bottom of the filled hose to achieve a beautiful effect and prevent leakage.
